Overview: What is the welded pipe manufacturing process?

Il welded pipe manufacturing process refers to a series of industrial operations that convert strip or plate steel into cylindrical tubes by forming, joining, and finishing. Unlike seamless pipe production, the welded pipe manufacturing process creates a longitudinal or spiral seam where edges are joined by welding. The welded pipe manufacturing process is widely used because it is flexible, cost-effective, and well-suited to a broad range of diameters, thicknesses and materials.

In practice, the welded pipe manufacturing process can be split into distinct families — electric resistance weld (ERW), high-frequency induction weld (HFI), e submerged arc weld (SAW) for large-diameter pipes — each tailored to the application and material used.

Types & methods in the welded pipe manufacturing process

The primary methods within the welded pipe manufacturing process include:

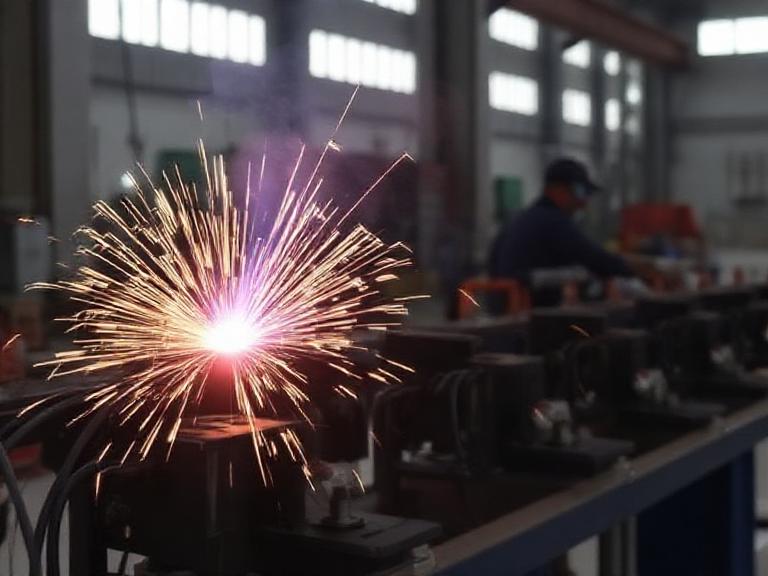

1. Electric Resistance Welding (ERW)

The ERW route in the welded pipe manufacturing process uses cold-formed strip edges joined by electric resistance followed by flash removal and pressure welding. ERW is common for small to medium diameters and provides a consistent, economical welded pipe manufacturing process.

2. High-Frequency Induction Welding (HFI or HF-ERW)

The HFI variant of the welded pipe manufacturing process heats the strip edges using high-frequency currents before forging them together. HFI delivers good weld quality and is widely used for line pipe and structural tubing.

3. Submerged Arc Welding (SAW)

For large-diameter pipes, the SAW method dominates the welded pipe manufacturing process. SAW joins formed edges with automated submerged arc welding (either single or double-helix), ideal for high-strength, thick-walled pipes used in pipelines and pressure vessels.

4. Spiral Welded Pipe

The spiral welded pipe manufacturing process forms plates into a helix and welds the seam continuously. This welded pipe manufacturing process enables large diameters and cost-efficient production for tanks and gas transport.

Materials & preparation in the welded pipe manufacturing process

The choice of material dictates key steps in the welded pipe manufacturing process. Most welded pipe manufacturing process lines work with carbon steel, stainless steel, nickel alloys and sometimes titanium. Material selection affects forming temperature, edge preparation, welding parameters, and post-weld heat treatment.

Common input formats

• Coil strip: used in ERW / HFI processes — edge trimmed and formed.
• Plate: used in SAW and spiral welded pipe manufacturing process — shaped and welded.
• Sheet: smaller quantities or lower-pressure applications.

Surface and edge preparation

Before joining, the welded pipe manufacturing process requires precise edge squaring and cleaning. Deburring, chamfering (for SAW), and degreasing are common preparatory steps to ensure weld integrity in the welded pipe manufacturing process.

Typical workflow for the welded pipe manufacturing process

Although details vary by method, a typical welded pipe manufacturing process follows these stages:

1. Material uncoiling or plate cutting: feedstock is prepared for forming.
2. Forming / shaping: rollers or mandrels shape strip/plate into cylindrical geometry — the first step in the welded pipe manufacturing process.
3. Edge alignment and tack: edges are aligned with precision guides to ensure accurate weld seam placement in the welded pipe manufacturing process.
4. Welding: ERW / HFI / SAW actions fuse edges to create a continuous seam — the central welding step in the welded pipe manufacturing process.
5. Post-weld treatment: flash removal, grinding, heat treatment, and seam inspection are performed as part of the welded pipe manufacturing process.
6. Non-destructive testing (NDT): UT, RT, or eddy-current testing validate seam integrity within the welded pipe manufacturing process.
7. Dimensional finishing: straightening, beveling, coating, and threading are applied to meet customer specifications in the welded pipe manufacturing process.
8. Quality control and packing: final inspection, marking and export packaging complete the welded pipe manufacturing process.

Automation and inline monitoring are increasingly embedded across the welded pipe manufacturing process to reduce defects and improve throughput.

Quality control & testing in the welded pipe manufacturing process

Quality control is integral to the welded pipe manufacturing process. Major testing and inspection steps include:

Non-destructive testing (NDT)

• Ultrasonic testing (UT): common in the welded pipe manufacturing process to detect internal flaws.
• Radiographic testing (RT): used for critical weld seams in the welded pipe manufacturing process.
• Dye penetrant / magnetic particle: surface flaw detection used in the welded pipe manufacturing process.

Mechanical testing

Tensile, bend, impact and hardness tests assess mechanical properties as part of the welded pipe manufacturing process. Destructive sampling validates that weld metallurgy meets design criteria.

Metallurgical analysis & PWHT

For high-spec pipes, the welded pipe manufacturing process may include metallography and post-weld heat treatment (PWHT) to refine microstructure and toughness.

Corrosion & coating checks

Coating adhesion, corrosion tests, and cathodic protection checks are part of the downstream quality verification in the welded pipe manufacturing process.

Advantages & limitations of the welded pipe manufacturing process

The welded pipe manufacturing process offers many benefits, which explain its wide adoption:

Vantaggi

• Cost-efficiency: compared to seamless, the welded pipe manufacturing process uses less energy and material for many sizes.
• Flessibilità: wide range of diameters and wall thicknesses can be produced via the welded pipe manufacturing process.
• High production rates: continuous welded pipe manufacturing process lines deliver high throughput.
• Customization: tailored alloy choices and coatings in the welded pipe manufacturing process suit diverse industries.

Limitations

• Seam presence: welded seam requires strict control in the welded pipe manufacturing process for high-pressure uses.
• Material constraints: some alloys are more challenging to weld, increasing complexity of the welded pipe manufacturing process.
• Inspection burden: critical applications demand extensive testing within the welded pipe manufacturing process.

Applications and market for welded pipe manufacturing process products

Products from the welded pipe manufacturing process serve oil & gas transmission, petrochemical plants, water desalination, power generation, HVAC, structural and mechanical systems. The welded pipe manufacturing process is especially prominent for line pipe, casing, heat exchangers and structural tubing.

Market drivers for the welded pipe manufacturing process include pipeline expansion, infrastructure upgrades, renewable energy projects, and demand for corrosion-resistant stainless welded pipes.

Company spotlight: Toko Technology Co., Ltd. — welded pipe manufacturing process expertise

Summary table — welded pipe manufacturing process comparison
