​​​​1. Basic Concept​​

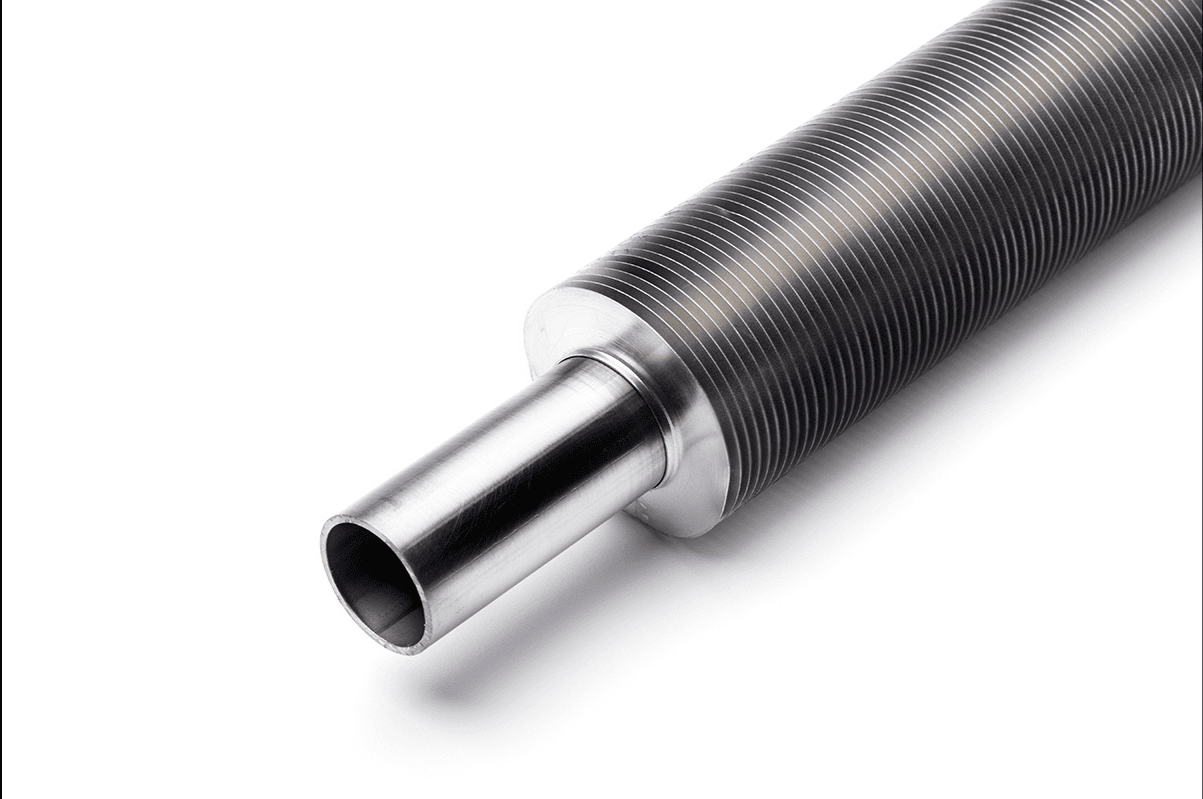

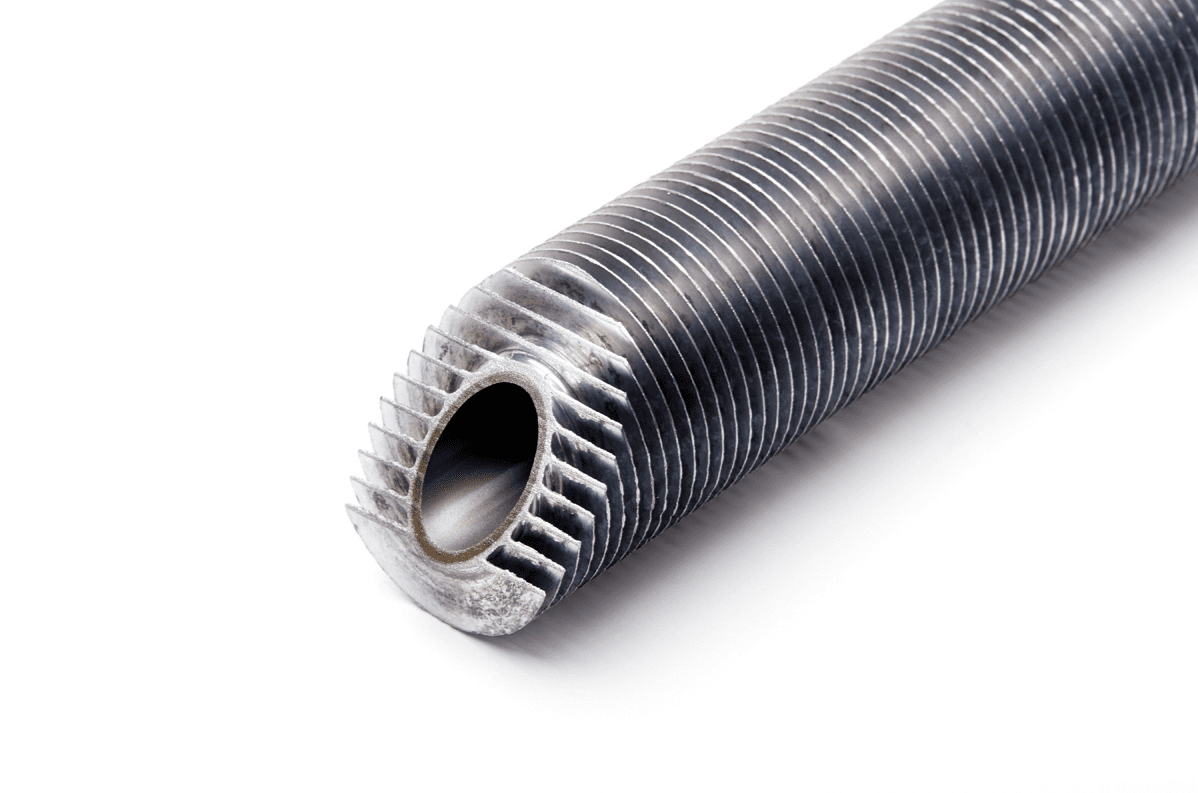

Finned tubes are high-efficiency heat exchange components designed to enhance heat transfer by expanding the surface area of the base tube. They are widely used in energy, chemical, HVAC, and other industries. Their core principle lies in leveraging fins to amplify heat transfer area, thereby improving thermal exchange efficiency between fluids and tube walls.

​​2. Core Structure and Working Principle​​

1. ​​Structural Components​​:
   • ​​Base Tube​​: Typically a metal tube (carbon steel, stainless steel, copper, etc.) that channels the medium and provides mechanical support.
   • ​​Fins​​: Thin metal sheets (e.g., aluminum, steel) bonded to the base tube via welding, extrusion, or winding processes to extend the heat transfer surface.
2. ​​Working Principle​​:
   • Heat is rapidly transferred between fluids and the base tube via the fins, significantly accelerating the heat exchange rate.

​​3. Main Types and Comparative Features​​

​​4. Key Performance Parameters​​

1. ​​Fin Ratio​​: 5–15x (fin surface area/base tube area). Higher ratios boost efficiency but increase flow resistance.
2. ​​Temperature Resistance​​:
   • Carbon steel: ​​-20°C to 350°C​​
   • Stainless steel: Up to ​​600°C​​
3. ​​Pressure Rating​​: Standard (1.6–6.4 MPa), high-pressure variants up to ​​32 MPa​​ (e.g., nuclear heat exchangers).
4. ​​Contact Thermal Resistance​​: <0.01 m²·K/W for welded types, a critical factor for heat transfer efficiency.

​​5. Material Selection Guide​​

• ​​Carbon Steel​​: Low cost, ideal for non-corrosive media (e.g., flue gas waste heat recovery).
• ​​Stainless Steel 316L​​: Acid/alkali resistance, preferred for chemical and food industries.
• ​​Copper-Aluminum Composite​​: High thermal conductivity (200 W/(m·K)), used in refrigeration.
• ​​Titanium Alloy​​: Resistant to seawater corrosion, specialized for desalination and marine systems.

​​6. Typical Applications​​

1. ​​Power Industry​​: Boiler economizers (improves coal combustion efficiency by ​​10–15%​​), air preheaters.
2. ​​Petrochemicals​​: Reactor jacket heat exchange, pyrolysis gas waste heat recovery (​​energy savings of 20–30%​​).
3. ​​HVAC Systems​​: Fresh air handler cooling coils, data center cooling.
4. ​​New Energy​​: Lithium battery electrode drying lines (±1°C temperature control), photovoltaic polysilicon production.

​​7. Selection and Maintenance Guidelines​​

​​Selection Steps​​:

1. Determine medium properties (temperature, pressure, corrosiveness).
2. Calculate theoretical heat transfer area (​​include 15–20% safety margin​​).
3. Optimize fin parameters (spacing >3 mm for easy cleaning, height adjusted based on flow velocity).

​​Maintenance Tips​​:

• ​​Regular Cleaning​​: Use compressed air or high-pressure water to remove debris from fin gaps.
• ​​Freeze/Corrosion Protection​​: Drain fluids during shutdowns; avoid chloride exposure for stainless steel.
• ​​Lifespan Monitoring​​: Inspect base tube wall thickness biennially; replace if corrosion rate exceeds ​​0.1 mm/year​​.

​​8. Technological Trends​​

1. ​​Advanced Materials​​: Silicon carbide-coated fins (>1000°C resistance), graphene composite tubes (50% higher thermal conductivity).
2. ​​Structural Innovations​​: 3D corrugated fins (turbulence-enhanced heat transfer), variable-spacing designs (adaptive to operating conditions).
3. ​​Smart Integration​​: Embedded temperature/pressure sensors for real-time performance monitoring and fault alerts.

​​Summary​​: Through structural optimization and material advancements, finned tubes remain pivotal in industrial energy efficiency and precision temperature control. Proper selection and maintenance can extend equipment lifespan by ​​3–5 years​​ and reduce energy costs by ​​over 20%​​, solidifying their role as core components in high-efficiency heat exchange systems.
